Przenośna ściana przegrodowa
Created with Pixso.

Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System

Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System

Nazwa marki: AE
Numer modelu: AE65
MOQ: 10 metrów kwadratowych
Cena £: USD 79-108 per square meter
Warunki płatności: T/T, L/C, Western Union
Zdolność do zaopatrzenia: 1000 metrów kwadratowych miesięcznie
Szczegółowe informacje
Miejsce pochodzenia:
Guangdong, Chiny
Orzecznictwo:
ISO9001 SGS CANS
Szereg:
AE65 Ruchoma ścianka działowa
Opcja wykończenia:
Materiały dostarczone przez klienta
Aplikacja:
Restauracja, Sala konferencyjna
Grubość:
68cm
Ocena STC:
42-56dB
Wymiary:
Personalizacja (wysokość: do 4,5 m, szerokość na panel: do 1,2 m)
Nazwa:
Przenośna ściana przegrodowa
Szczegóły pakowania:
Warstwa pianki i twarda karton ze sklejką lub stalową paletą
Podkreślić:

68CM Thickness Movable Partition Wall

,

800N Sealing Power Operable Wall System

,

40N/m Magnetic Attraction Room Divider

Opis produktu
Customizable Movable Partition Wall Office Operable Wall Systems

AE operable partitions are a series of panels suspended from tracks with high quality, functionality and variability for room-dividing and multifunctional layout configuration.

Key Features
  • German Partition Technology Global Professional Space Solutions
  • Highly competitive prices
  • Good quality control
  • Smooth communication
  • State-of-art technology products
  • Effective OEM&ODM service
Roller Options & Features
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Unique and patented wheel surface and shape for easy operation
Panel Options & Features
  • Thickness: 68mm, 89mm & 105mm options
  • Wide variety of acoustical and decorative finishes available
  • 6061-T6 profile with Q235 steel frame for superior durability
  • Top & bottom jack lifting mechanism seal with 800N power
  • Magnetic seal in concave & convex profile with 40N/m magnetic attraction
Technical Specifications
Series Element Thickness (mm) Element Width (mm)* Clear Height (mm)* Construction Panel Fixing Element Interconnection
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technical Details
  • Weighted sound reduction value: 52/56 dB (Rw) per GB/T19889.3-2005
  • Positive and frictional locking of vertical element connections
  • Convex-concave profile form with magnetic strip attraction force of 40 N/m
* Larger widths possible on application. Provisional details regarding element heights/widths require consultation with Design Department.

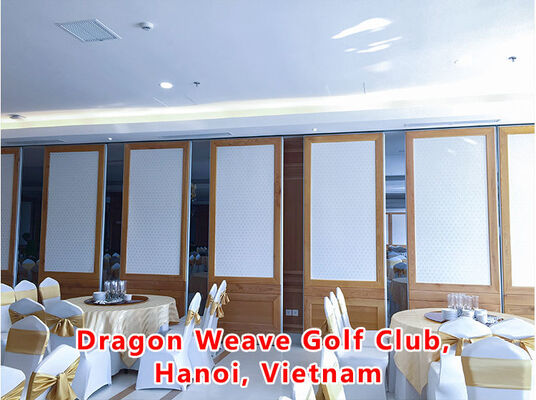

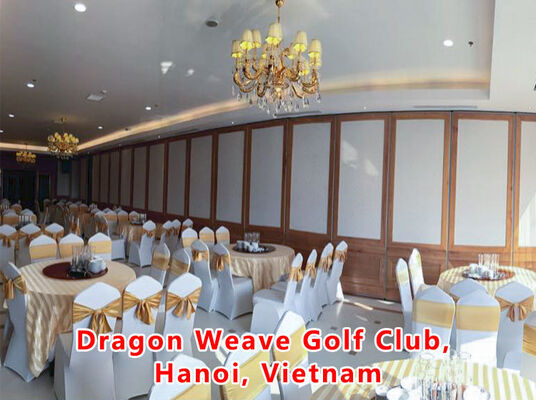

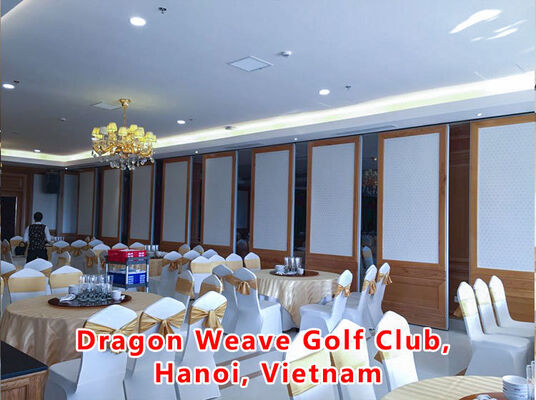

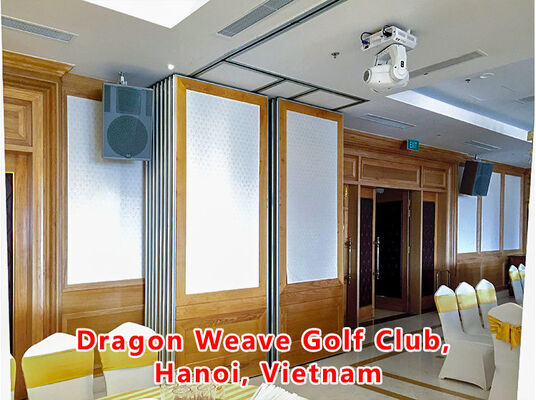

Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System 0 Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System 1 Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System 2
